Overview

eSUB’s latest feature enhancement allows users to enable RFI’s to synchronize between eSUB and PlanGrid. The following actions will trigger RFI Synchronization between the associated eSUB and PlanGrid projects:

The Enable RFI Synchronization setting is enabled in eSUB
User creates a new RFI
User edits an existing RFI
User views the RFI Log

NOTE: RFI’s created prior to enabling RFI Synchronization must be re-saved before appearing in the associated eSUB or PlanGrid project.

eSUB to PlanGrid RFI Fields

eSUB Field	PlanGrid Field
Subject Clarification Requested Answer Return By Date RFI Date Attachments	Title Question Answer Due Date Sent Date References

eSUB to PlanGrid RFI Status Fields

eSUB Status	PlanGrid Status
Pending Pending Answered Void Pending	Draft (Green) Open (Blue) Closed (Yellow) Void (Red) Custom (Orange/Violet)

Table of Contents

Enable PlanGrid Integration
Associate eSUB Project to PlanGrid Project
Enable PlanGrid RFI Synchronization

Enable PlanGrid Integration

Click Here to view the associated Help Center article.

Back to TOC

Associate eSUB Project to PlanGrid Project

Click Here to view the associated Help Center article.

Back to TOC

Enable PlanGrid RFI Synchronization

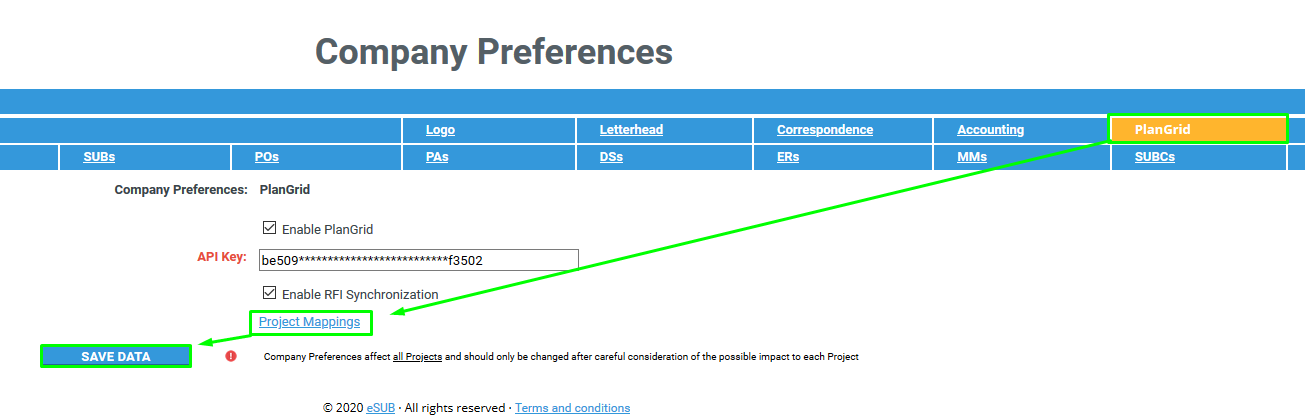

Go to Start > Settings > Administration > Company Setup
Select Company Preferences > PlanGrid
Select the Enable RFI Synchronization check-box
Select Save Data

Back to TOC
