Graphs

Overview

The Graphs menu will generate useful graphs based on information within a project on a project-by-project basis.

The Graphs menu can be reached from the Project Management module. To view a project graph, take the following steps:

Select the project, then:

1. Go to Graphs > Select the desired Graph type

 Table of Contents

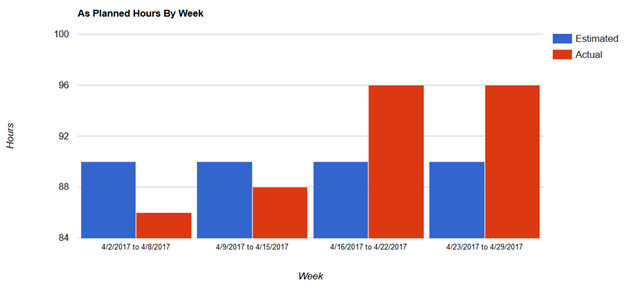

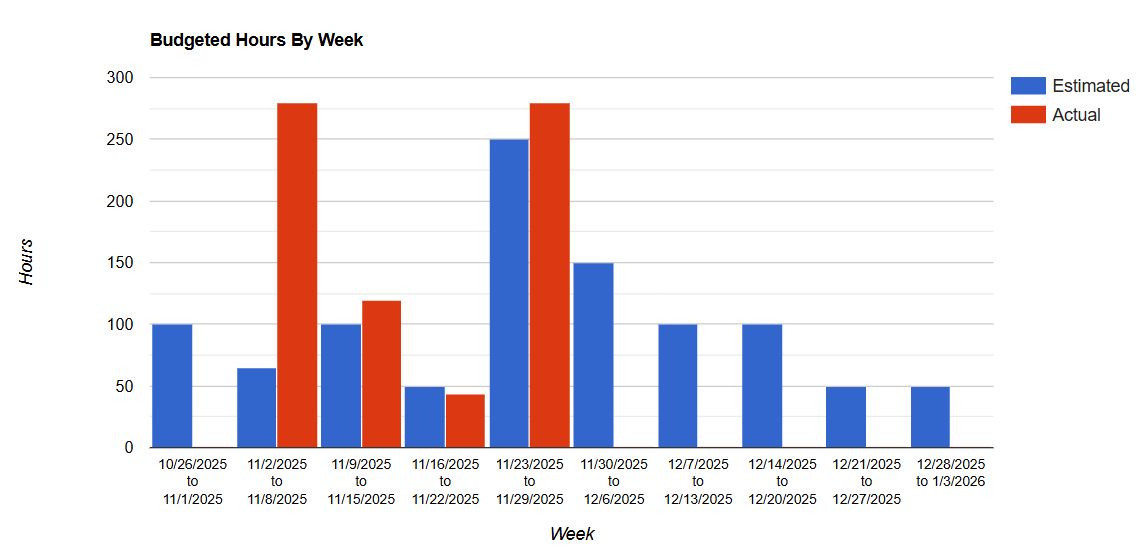

As Planned Hours By Week

Shows overview of how many Labor Hours were actually used vs. planned thus far in the project.

  • Data is broken out by week
  • Dates must first be entered in the As Planned hours section under Project Configuration
  • To enter As Planned Hours and update the Actual Dates:
    • Select the project, then: Go to Project > Configure > Advanced Setup > Enter As Planned Hours By Week
    • Select the project, then: Go to Project > Configure > Advanced Setup > Enter As Planned/Actual Dates

Data Reference:

Estimated Hours Actual Hours
As Planned Hours By Week Daily Report Labor Hours

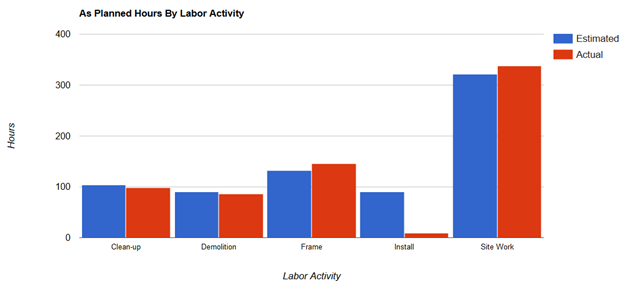

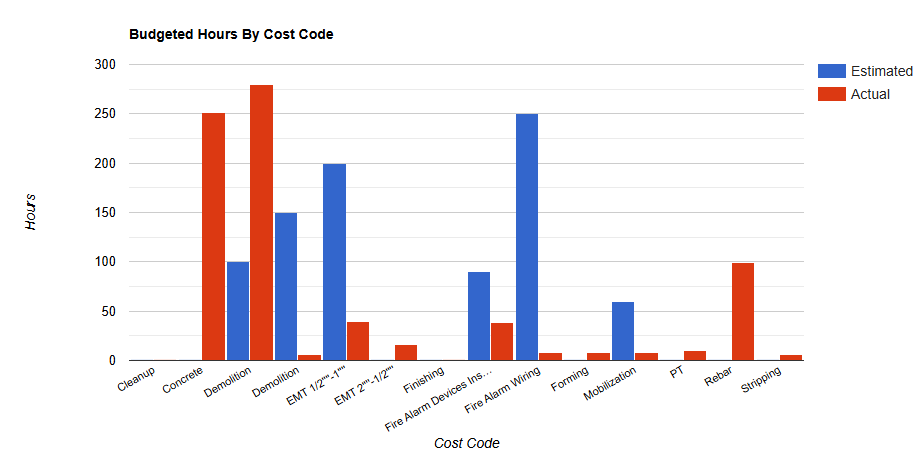

As Planned Hours By Labor Activity

Shows overview of the estimated Labor Activities hours vs. actual Labor Activities hours used to date on the project.

  • Data is broken out by Labor Activity
  • Labor Activity hours estimates must first be entered in the Estimated Labor and Material Costs section
  • To enter Labor Activity hours estimates:
    • Go to Project > Configure > Add Estimated Labor and Material Costs

Data Reference:

Estimated Hours Actual Hours
Estimated Labor and Material Costs Daily Report Labor Hours

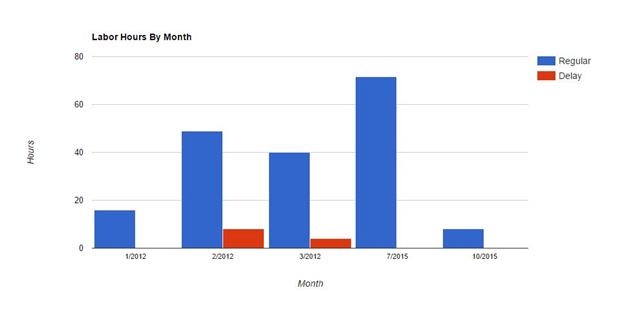

Labor Hours By Month

Displays a graph representing the Regular vs. Delayed Labor Hours expended on the project.

  • Data is broken out by month
  • Must have Daily Report hours in more than one month in order to display graph

Data Reference:

Labor Hours By Month
Daily Report Labor Hours

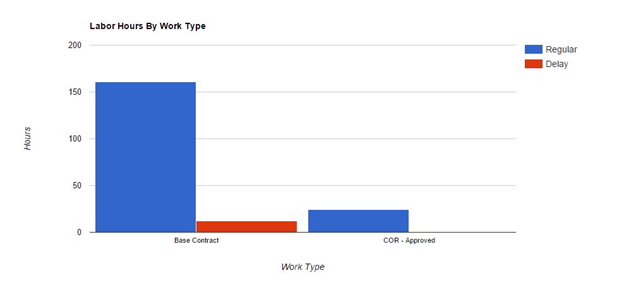

Labor Hours By Work Type

Displays a graph representing the Regular vs. Delayed Labor Hours by Work Type on the project.

  • Must have more than one Work Type in Daily Reports in order to display graph

Data Reference:

Labor Hours By Work Type
Daily Report Labor Hours

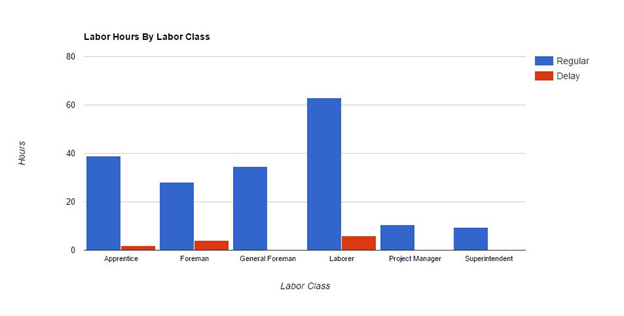

Labor Hours By Labor Class

Displays a graph representing the Regular vs. Delayed Labor Hours by Labor Class on the project.

  • Data is broken out by Labor Class
  • Must have more than one Labor Class used in Daily Reports in order for graph to display

Data Reference:

Labor Hours By Labor Class
Daily Report Labor Hours

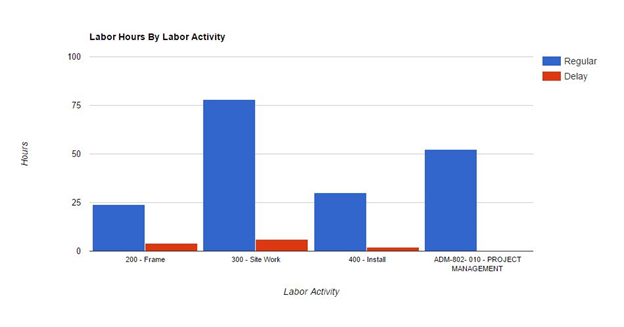

Labor Hours By Labor Activity

Displays a graph representing the Regular vs. Delayed Labor Hours by Labor Activity on the project.

  • Must have more than one Labor Activity used in Daily Reports in order for graph to display

Data Reference:

Labor Hours By Labor Activity
Daily Report Labor Hours
